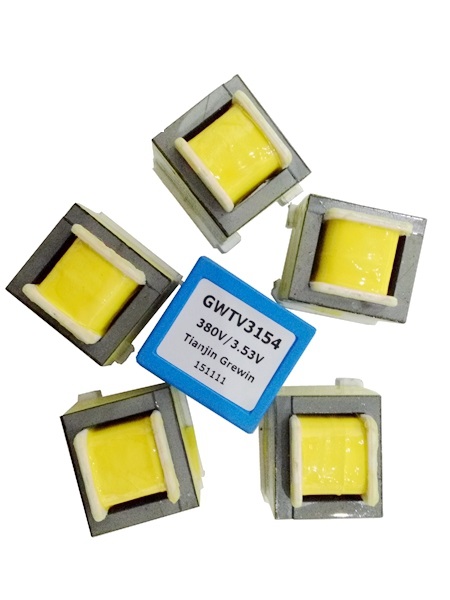

Minature Low Voltage Transformer

Feutures:

Low cost

More than 20 standard sizes

Non-symmetrical mounting pattern

Laminated Silicon steel and Nickel Alloy available.

Application:

For applications that require accuracy with small phase angle error

Applications would include Voltage, power and energy monitoring devices.

Specification:

Isolation Voltage:2500 Vrms for 1 minute

Dielectric Resistance:1000 M Ohms @ 500 Vdc

Surge Withstand:5000V（1.2/50μs standard shock wave)optional

Rated Load Resistance:100K Ohms

Operating Temperature:-25 to +55℃-40 to +85℃optional

Frequency:50 to 400 Hz

Accuracy Class:as defined in IEC 61869-3 Part 3 Voltage Transformers Class 0.2,0.5

RoHS compliant.
