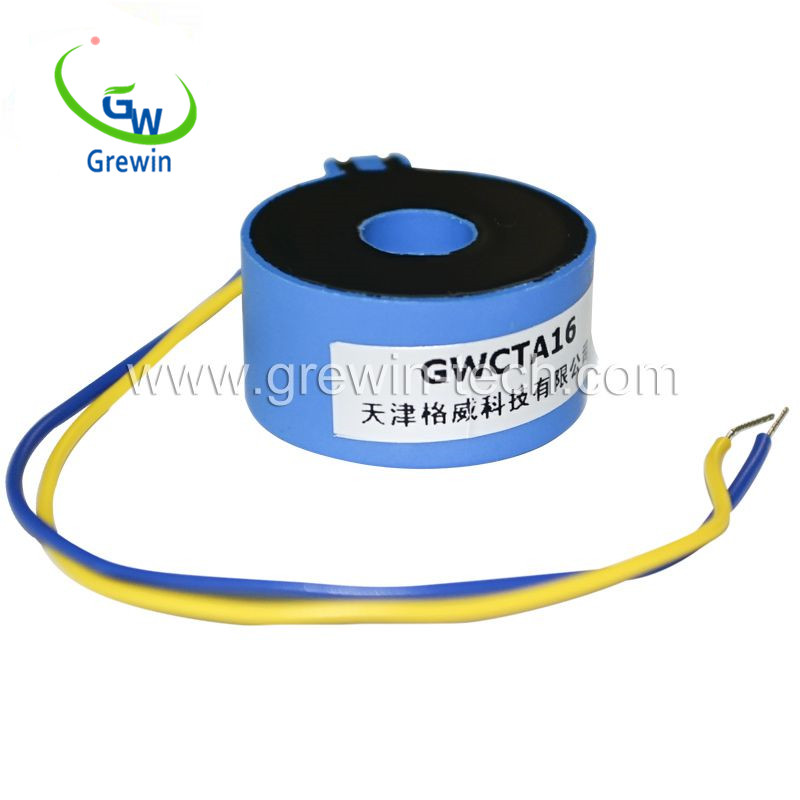

DC Immunity Current Transformer

Features:

Low cost

More than 50 standard sizes

Non-symmetrical mounting pattern

Toroidal Silicon steel and Nickel Alloy cores available;

Applications:

For applications that require exceptional accuracy with minimal phase angle error

Applications would include Current, Power and Energy monitoring devices.

Specifications:

Exterior Material:PBT Resin UL flame retardant rating 94-V0.

Interior Insulation:Epoxy Encapsulated

Isolation Current:2500 Vrms for 1 minute

Dielectric Resistance:1000 M Ohms @ 500 Vdc

Surge Withstand: 5000V（1.2/50μs standard shock wave）optional

Rated Load Resistance:100K Ohms

Operating Temperature:-25 to +55℃,-40 to  +85℃ optional

Frequency:50 to 400 Hz

Accuracy Class:as defined in IEC 60044-1 Part 1 Current Transformers Class 0.1,0.2

RoHS Compliant
