600V Three Phase Current transformer
600V Three Phase Current transformer
shared：
Features：
Low cost
Water proof

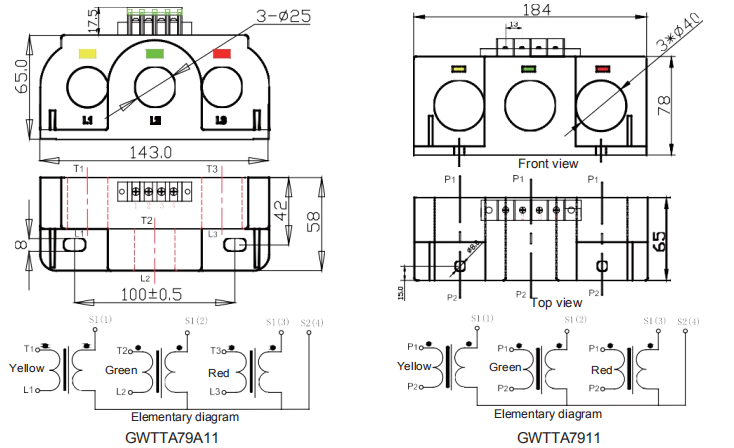

2 outline size

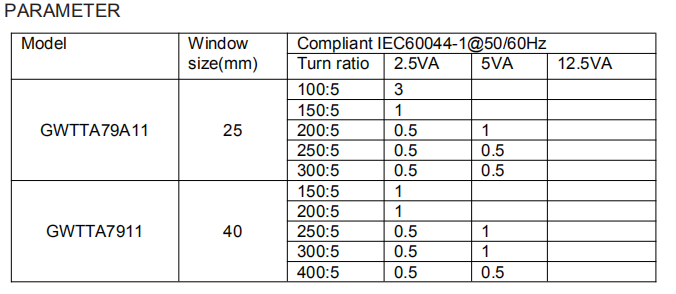

5.0,1.0,0.2&0.1Aac secondary ratios available
Applications：
Current,Power,Energy monitoring devices
Relay protection device
Specifications：
Shell material:ABS
Frequency:50-400 Hz
Operating Temperature:-25 to +55℃,-40 to +85℃ optional
Operating Voltage:600Vac
Isolation:600V,BIL 10KV Full Wave
Accuracy class:compliantIy IEC 61869-2
RoHS compliant.
