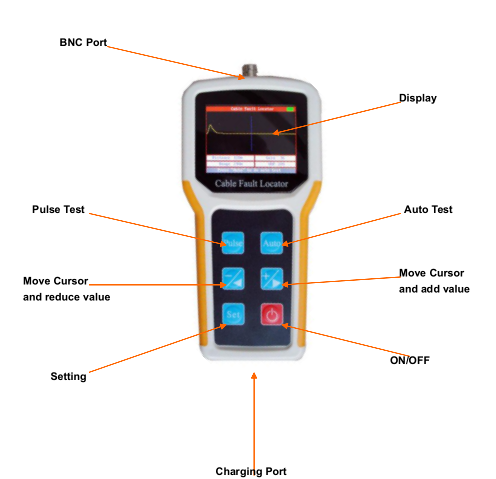

TDRL-902Handheld Cable Fault Locator

Features：

1) Digital gain Adjustment control to make the gain adjustment very easy.

2) Digital waveform automatically Identify technique to make sure no test dead zone.

   3)  Top grade ARM single chip micro computer can make calculation and judge the fault waveform exactly.

   4)  Large colorful LCD display; humanized operation interface; six function keys can do all the tests.
       5) High-energy Li battery, continuous work 10 hours (with special charger).

 Specification：

1)      Max range: 8 km (16km/32km are optional)

      2)      Highest resolution: 1m

       3)      Dead Zone: 0 m

       4)      Power consumption: 1W

       5)      Weight(kg): 0.38kg

      6)      Dimension(mm): 204×100×36mm3

      7)      Working temperature: -15℃ to + 45℃

              Storage temperature: -20℃~ + 55℃

       8)     USB storage (optional): transmit wave form to U disk, and analyze the wave form on computer.
